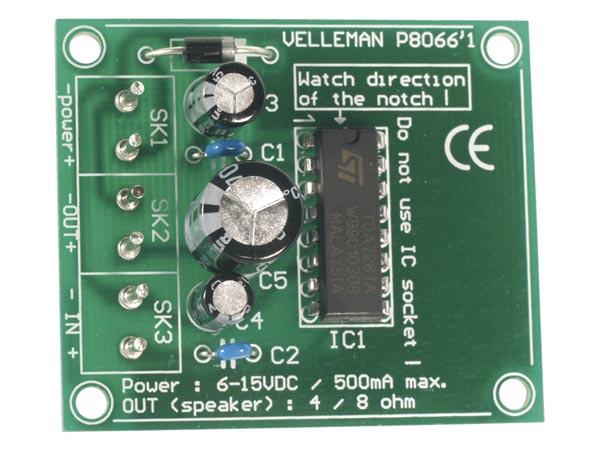

3W MONO AMPLIFIER
| K8066 | |
|---|---|
| Support | |
|
Downloads (5) Support |
Small but powerful amplifier suits a wide range of applications such as : microphone amp, for doorbells, melody generators, intercom, sound effects, earphones, radio receivers, PC sound card, musical instrument, ...
Features
- compact size
- low partcount
- no additional heatsink required
- single supply
- wide supply range
- excellent protection
Specifications
- output power: 3Wrms (4-8 ohm, 15VDC, 10% THD)
- frequency range: 50Hz - 20kHz (1W/8ohm, -3dB)
- gain: 32dB (40x)
- thermal protection
- short circuit protection
- power supply: 6 ~ 15VDC
- current consumption: 500mA max.
- dimensions: 1.6 x 1.9"
