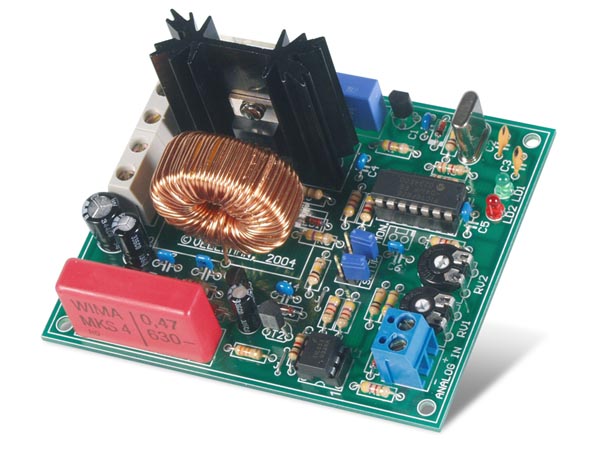

DC CONTROLLED DIMMER
- simple brightness adjustment by means of a DC voltage
- optically isolated adjustment input
- pre-set adjustment for full brightness
- suitable for incandescent lamps, mains voltage halogen lighting and low voltage halogen lighting in combination with a conventional transformer
- "Soft start" feature to ensure lamp longevity
- transformer protection in case of defective light sources
- LED status indication
- compatible with our computer interface cards: K8000, K8055
- adjustment voltage of: 0 to 12Vdc max.
- max. adjustment current: 2.25mA at adjustment voltage of 12V
- suppression of radio & TV interference according to EN55015
- operating voltage: 110-125V or 230-240V AC (50/60Hz)
- max. load: 750W/230V or 375W/110V, adjustable from 0-98%
- max. phase shift with inductive load: 30°
- PCB dimensions: 3.5 x 3 x 1.6"
